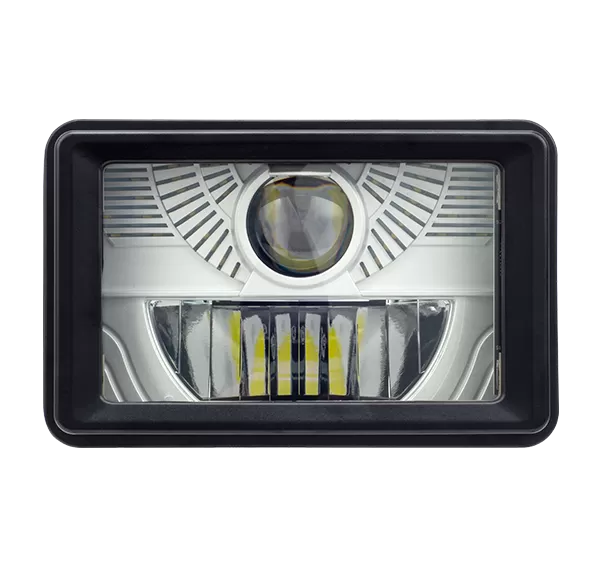

Groundbreaking LED snowplow combo headlight. Small size of only 4X6",and suitable for diversified vehicles with simple installation.
With new low beam optic system of up to 30° beneath cut-off lineits wide illumination is like work lamp but without glare.
Removing the dark corners of 3-5m ahead of snowplow vehicles.
Only 60% to traditional LED snowplow headlight;ECE, DOT approved. Illumination as wide as work lamp.
| Model: | E1336M | |
| Functions, Homologation | ||
| Functions: | High Beam, Low Beam, Position De-icing | |
| Homologations: | ECE R112, R7, R10.DOT J1383/ J222 | |
| Optical & Electric Features | ||
| LED Type: | OSRAM OEM Vehicle Level LEDs | |
| Emitting Color: | White | |
| Color Temp: | 5700K | |
| Raw Lumen: | Low Beam:1400LM; High Beam:1400LM; Position:1200LM; | |
| Effective Lumen: | Low Beam:489 LM; High Beam 534 LM; Position:29 LM; | |
| Effective Power: | Low Beam:12.5 W; High Beam:12.5W; Position:2.5W; | |
| Current Draw@12V | Low Beam:1.04 A; High Beam:1.04 A; Position:0.2 A; | |
| De-Icing Tech: | Heating Glass | |
| De-icing Power: | 22W | |
| ControlMode: | Automatic temp. sensor switch | |
| Heating Temp.: | Constant 45°Clens | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 5 | |
| Operating Voltage: | 10~30VDC | |
| Connector: | H4+Cable | |
| Mechanical Features | ||
| Size: | 166X107X83.3MM | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Tempered Glass | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| Mount: | Flush Mount | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
| Warranty: | 3Years | |
