- Classic OEM design
- Optimized optical design with OSRAM vehicle LEDs
- Higher energy efficiency
- Zero noise, zero radio interference, ECE R10
- PC lens surface hardened
- Bracket mount optional (bottom right)

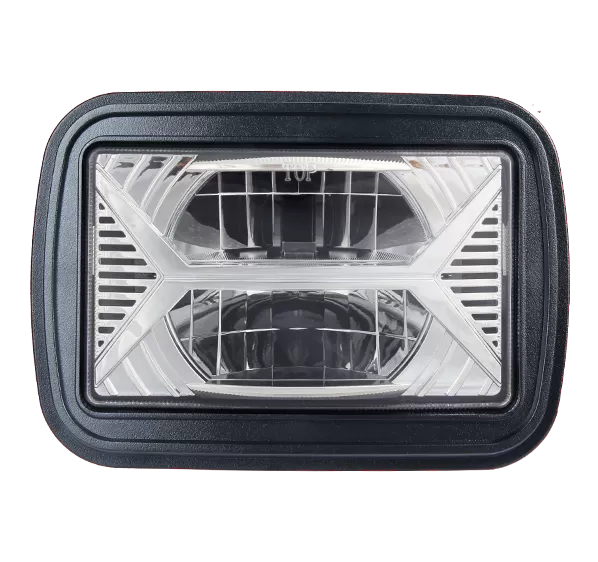

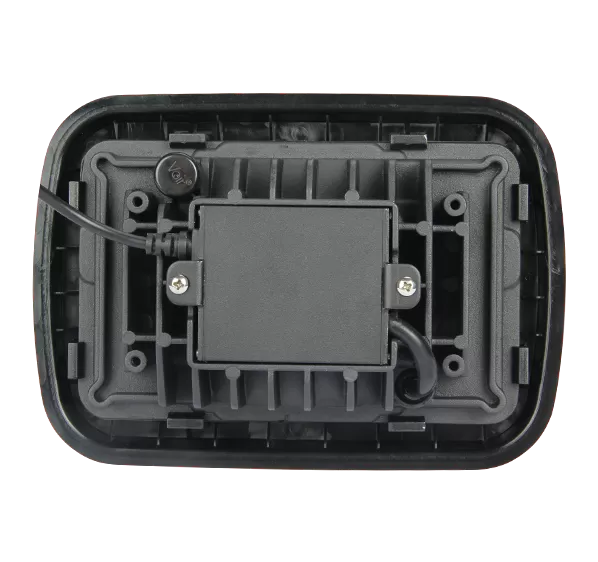

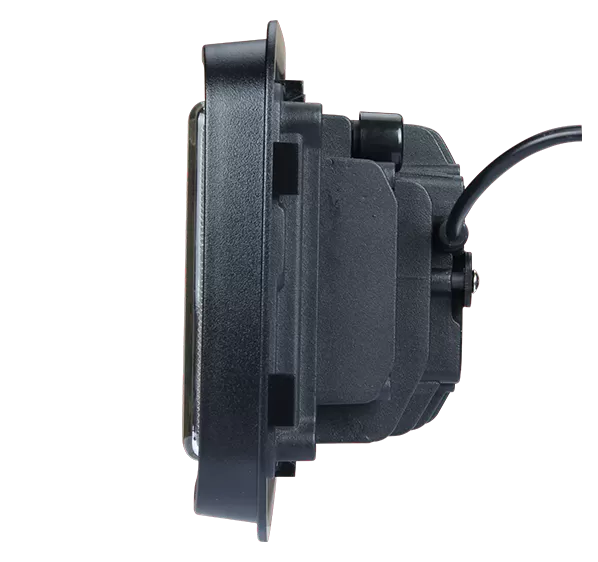

| Model: | E1306 | |
| Functions, Homologation | ||
| Functions: | Low Beam, High Beam | |
| Homologations: | DOT FMVSS 108 ECE R112 | |
| Optical & Electric Features | ||
| LED Type: | Low Beam:1pcs OSRAM LED High Beam:1pcs 15W 3chip LED +1pcs OSRAM LED | |
| Emitting Color: | White | |
| Color Temp: | White:5700K-6500k | |
| Energy Consumption: | Low Beam: 16W; High Beam: 21W; | |
| Current Draw@12V | Low Beam:1.33A; High Beam: 1.75A; | |
| Illumination: | High Beam:1 lux @235m Low Beam:1 lux @110m | |
| Electromagnetic Features | ||
| EMC Grade: | ECE R10 | |
| Operating Voltage: | 10~30VDC | |
| Connector: | H4 | |
| Mechanical Features | ||
| Size: | 198.5 X140.6X78.7mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| Bracket Material: | Stainless Steel | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | —40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
