Pioneering corn lens opticsRedefining work lights
-Zero glare,unique asymmetric beam with sharp cut-off line.
-Increased visibility and safety, more road illumination
-Zero noise, zero radio interference, CISPR 25 Class
-ATM powered (Automatic Thermal Management) for stable lumen output
-Tough and endurable design
Vibration level: up to 15.3Grms
Shock resistance: up to 60c

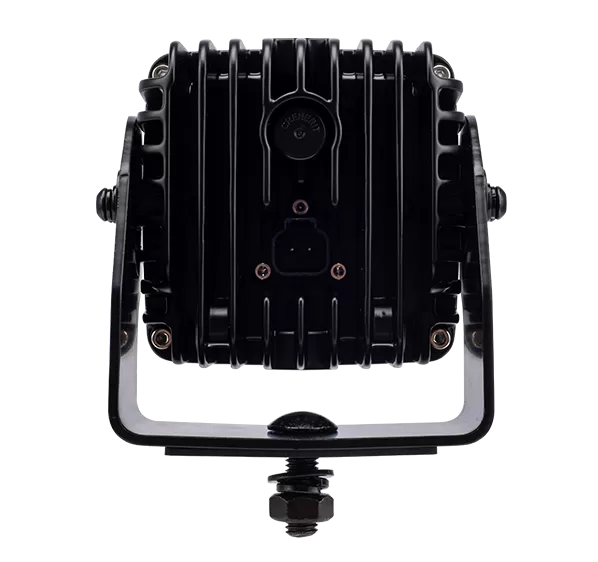

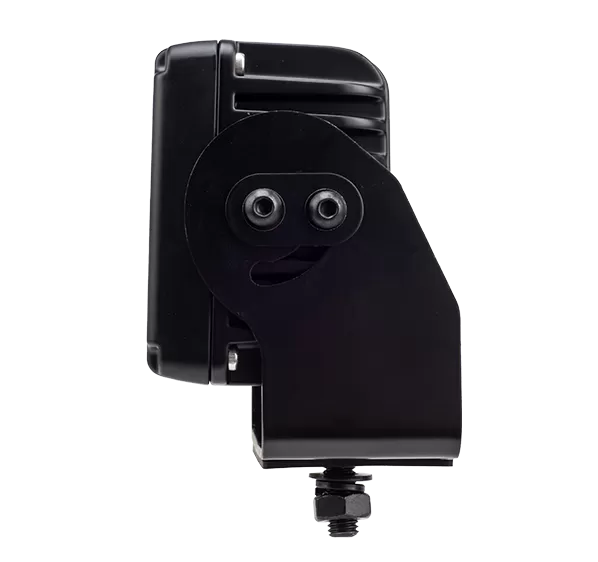

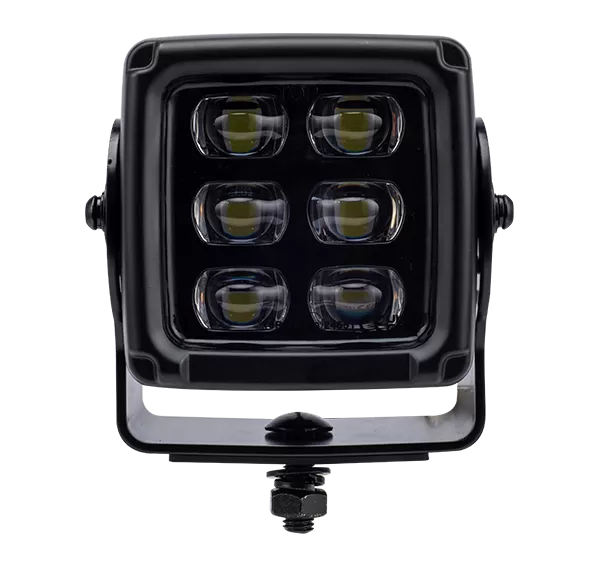

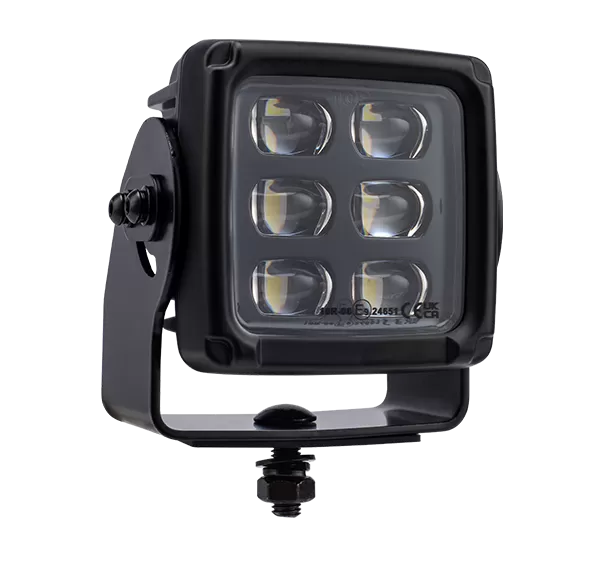

| Model: | E2198M | |
| Functions, Homologation | ||
| Functions: | Asymmetric lens pattern | |
| Homologations | ECE R10 | |
| Optical & Electric Features | ||
| Color Temp: | 5700~6500K | |
| Raw Lumen: | 6600LM | |
| Effective Lumen: | 4000LM | |
| Luminous Efficacy: | 81LM/W | |
| Raw Power: | 81W | |
| Effective Power: | 70W | |
| 1LUX@m | 165M | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10V~30V | |
| Connector: | DT / AMP/ Cable (Optional) | |
| ATM: | Active thermal management | |
| Mechanical Features | ||
| Size: | 213X100X 70mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Bracket: | Stainless Steel | |
| IP Rate: | IP67, IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
