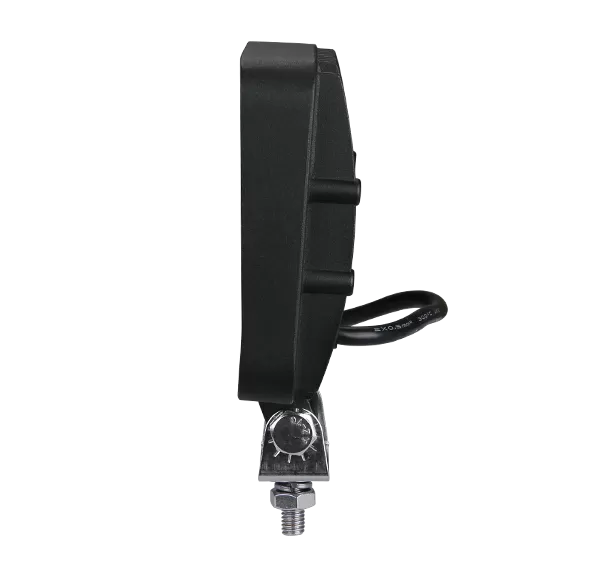

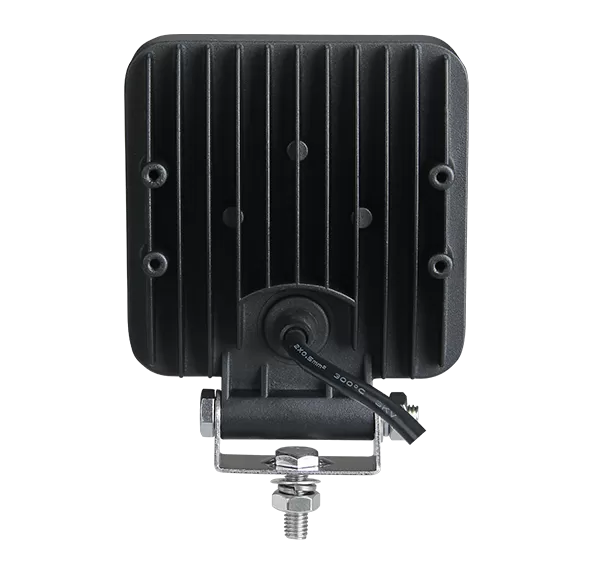

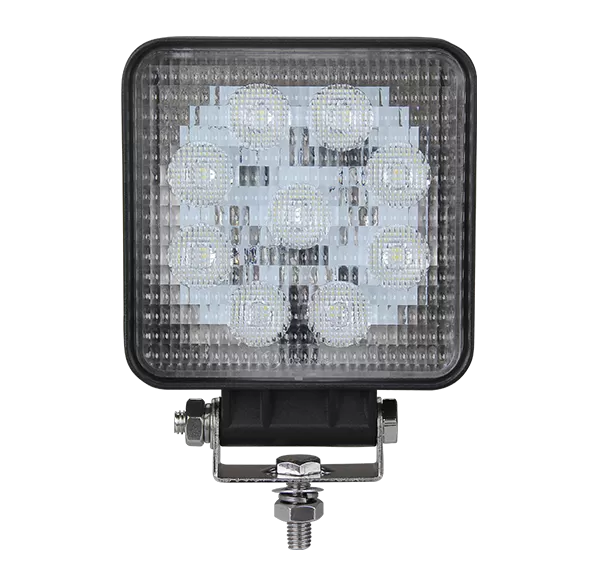

| Model: | E-WL-LED-00023SP | |
| Functions, Homologation | ||
| Functions: | Flood /Spot | |
| Homologations | ECE R10 | |
| Optical & Electric Features | ||
| LED Type: | 9pcs 3W LEDs | |
| Color Temp: | 5000~6500K | |
| Raw Lumen: | 2376LM | |
| Effective Lumen: | 1576LM | |
| Luminous Efficacy: | 90LM/W | |
| Raw Power: | 27W | |
| Effective Power: | 17.52W | |
| Current Draw: | 1.46A@12V, 0.73A@24V | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 5 | |
| Operating Voltage: | 10V~30V | |
| Connector: | DT / AMP/ Cable (Optional) | |
| Mechanical Features | ||
| Size: | 109X138 X41mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| PC Brand | COVESTRO 2407 | |
| Bracket: | Stainless Steel | |
| IP Rate: | IP67,IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
