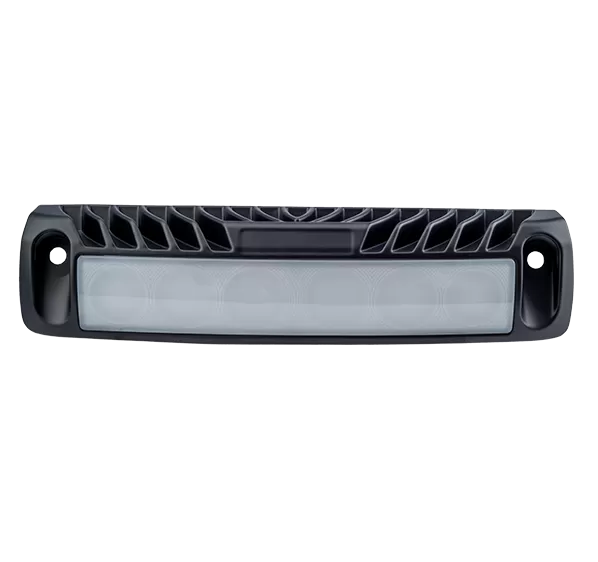

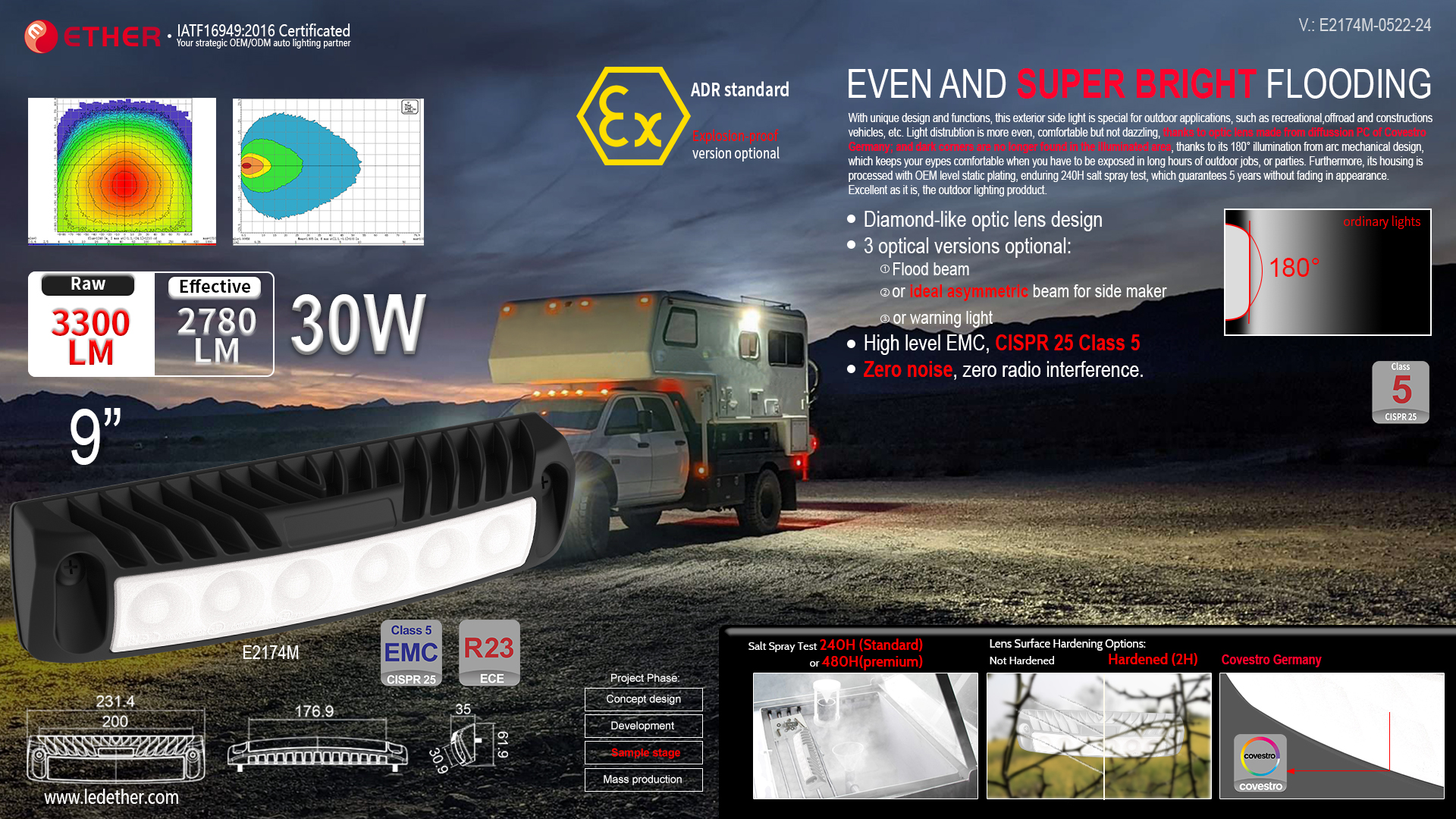

With unique design and functions, this exterior side light is special for outdoor applications, such as recreational,offroad and constructionsvehicles, etc. Light distrubtion is more even, comfortable but not dazzing, thanks to optic lens made from diffussion PC of CovestroGermany and dark corers are no longer found in the luminated aree, thanks to its 180 llumination from arc mechanical design,which keeps your eypes comfortable when you have to be exposed in long hours of outdoor jobs, or parties. Furthermore,its housing isprocessed with OEM level static plating, enduring 240H salt spray test, which guarantees 5 years without fading in appearance.Excellent as it is, the outdoor lighting prodduct·
Diamond-like optic lens design
3 optical versions optional:
-Flood beam
-or ideal asymmetric beam for side maker
-or warning light
High level EMC, CISPR 25 Class 5
Zero noise, zero radio interference.
| Model: | E2174 | |
| Beam Pattern: | Flood Beam | |
| Homologation: | ECER10 | |
| LED Type: | 6 pCs OSRAM 5W LEDs | |
| Color Temp: | 5700K-6500K | |
| Raw Lumen: | 3300LM | |
| Effective Lumen: | 2780LM | |
| Raw Power: | 30W | |
| Effective Power: | 29W | |
| Current Draw: | 2.42A@12V, 1.21A@24V | |
| EMC Grade: | CISPR25 Class5 | |
| Operating Voltage: | 10~30VDC | |
| Connector: | Open Cable | |
| Mechanical Features | ||
| Size: | 231.4X35X61.9MM | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40—+50°C | |
| Life Time: | >30,000H | |
| Warranty: | 3 Years | |
