| Model: | E2102 | |
| Functions, Homologation | ||
| Beam Pattern | 80°Flood Beam | |
| Homologations | ECE R10 | |
| Optical & Electric Features | ||

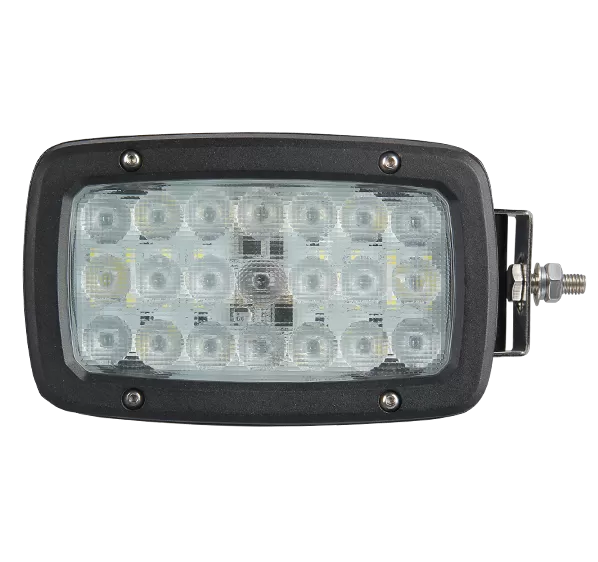

| LED Type: | 21pcs LEDs | |
| Color Temp: | 5000~6500K | |
| Raw Lumen: | 4830LM | |
| Effective Lumen: | 4318.5LM | |
| Luminous Efficacy: | 118.7LM/W | |
| Raw Power: | 63W | |
| Effective Power: | 36.36W | |
| Current Draw: | 3.03A@12V; 1.515A@24V | |
| Electromagnetic Features | ||
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10V~30V | |
| Connector: | DT / AMP/ Cable (Optional) | |
| Mechanical Features | ||
| Size: | 160 X 111 X 75 mm | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| PC Brand: | COVESTRO 2407 | |
| Bracket: | Stainless Steel | |
| IP Rate: | IP67, IP6K9K | |
| Work Temp: | -40~+50°C | |
| So this is Life | ||
| Life Time: | >30,000H | |
