E8202
Zero noise
Zero radio interference
Compact design
Universal mount
Natural white light
Day light illumination
Comfortable to driver's eyes
Switch control and simple to operate
Zero noise
Zero radio interference
Compact design
Universal mount
Natural white light
Day light illumination
Comfortable to driver's eyes
Switch control and simple to operate
| Functions, Homologation | |
| Functions: | Cab lighting |
| Homologation: | ECE R10 |
| Optical & Electric Features | |
| LED Type (Optional): | White |
| Color Temp: | 5000-5500K |
| Raw Lumen: | 680LM |
| Effective Lumen: | 373LM |
| Luminous Efficacy: | 93.25LM/W |
| Raw Power: | 5.4W |
| Effective Power: | 4.0W |
| Current Draw: | 0.33A@12V; 0.16A@24V |
| Electromagnetic Features | |
| EMC Grade: | CISPR 25 Class 5 |
| Operating Voltage: | 10V~30V |
| Connector: | Open cable or 3P DT |
| Mechanical Features | |

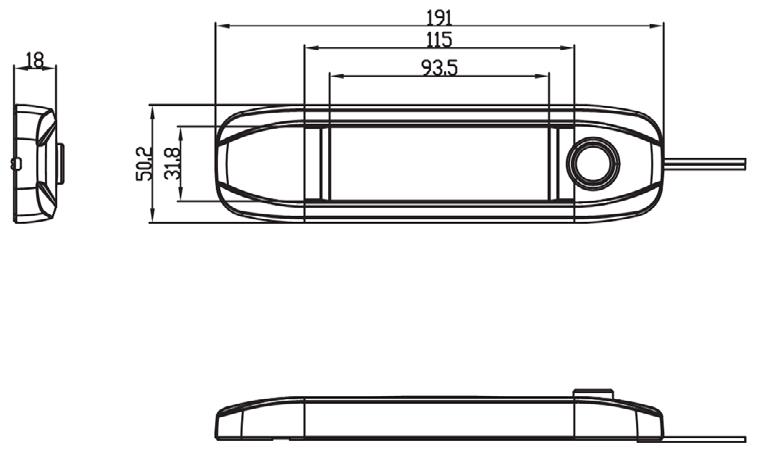

| Size: | 191 X51X22mm |
| Housing Material: | Aluminium Alloy |
| Lens Material: | Anti-UV PC |
| PC Brand: | COVESTRO 2407 |
| Bracket: | Screw mount |
| IP Rate: | IP54 |
| Work Temp: | -40~+50℃ |
| Life Time: >30,000H | |
Zero noise
Zero radio interference
Compact design
Universal mount
Natural white light
Day light illumination
Comfortable to driver's eyes
Switch control and simple to operate
