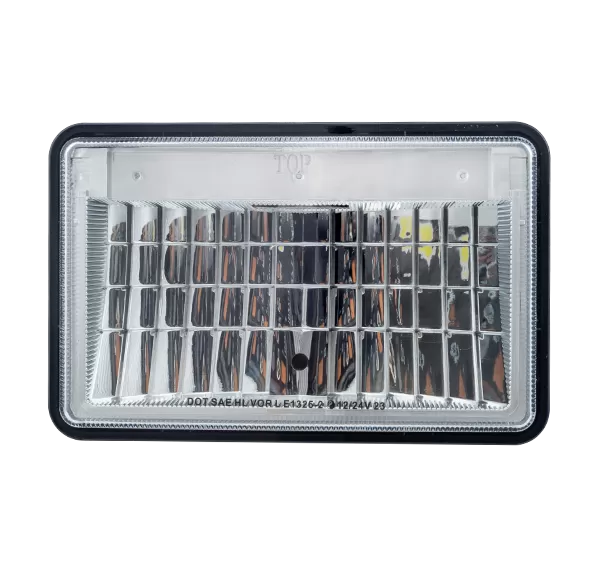

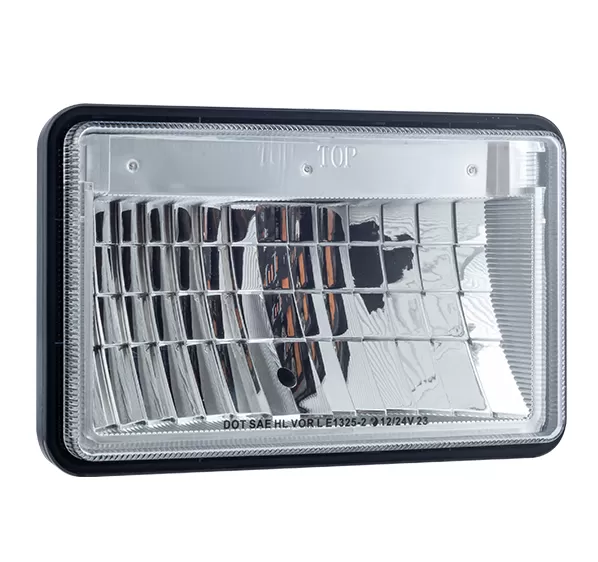

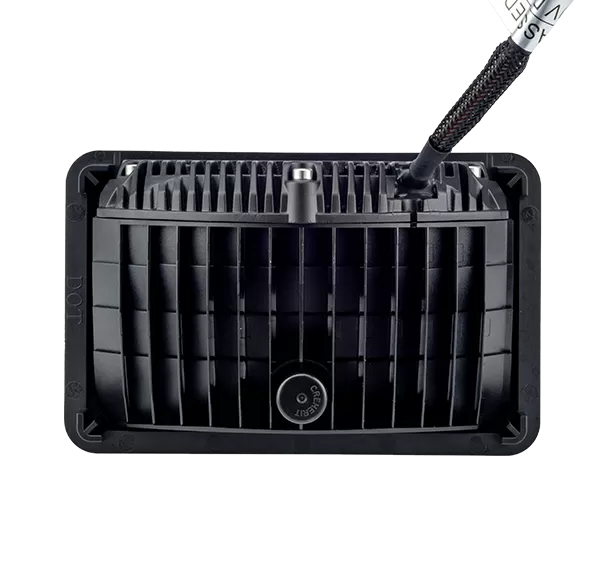

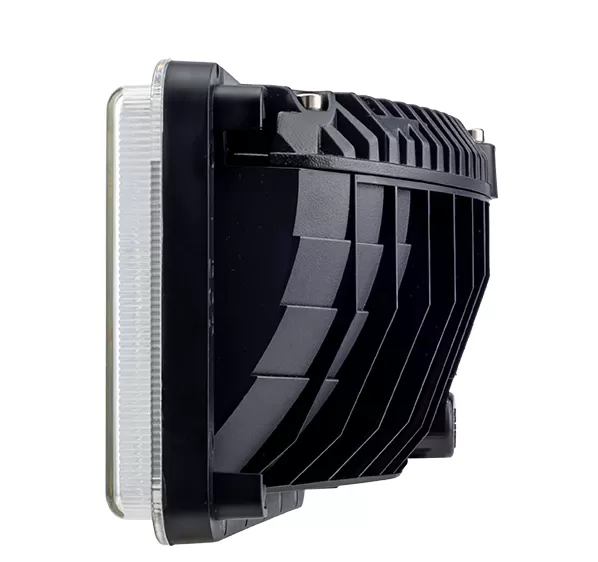

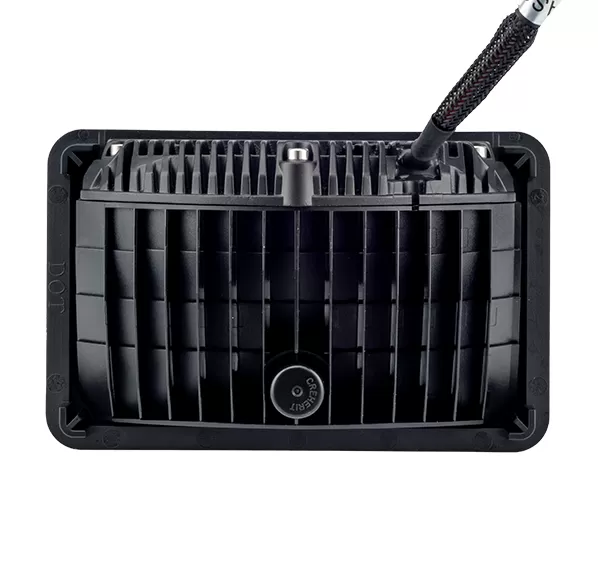

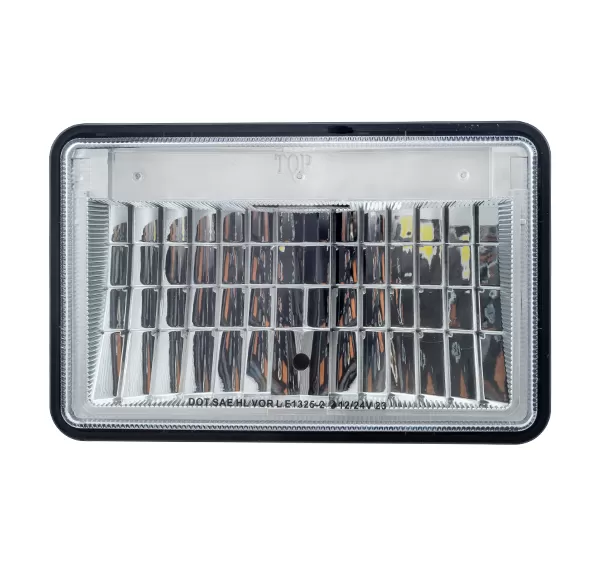

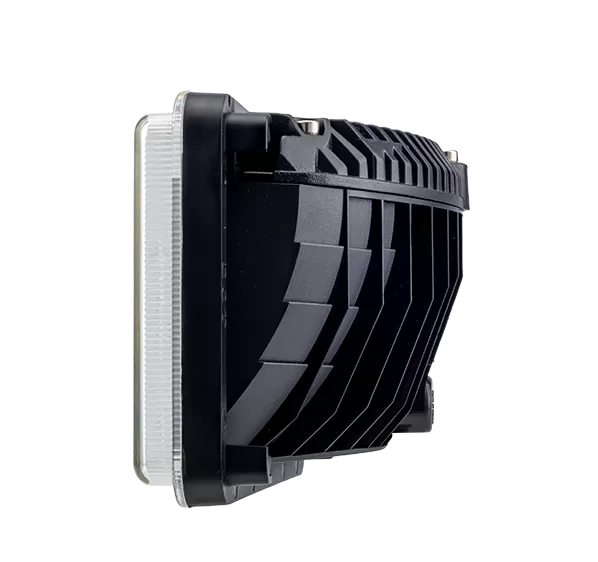

E1325 Classic 4X6" LED headlight

Automotive grade LED packaged with PiG(Phosphor in Glass),lmproved thermal stability is guaranteed for LEDs electronic components, electroplated reflectors, etc; More endurable performance against UV or high temperature3 year warranty even based on 24/7 operations, Authoritative DOT/SAE tests by ISO0A America

1.Lossless installation, mounting size identical with OE headlights

2.Eco version vs Pro version optional.

3.Pro version special for high-end retrofiting

4.Endurable lighting performance, lifetime test over 10000hours

Inquire Now

NEXT PRODUCT

Model:	E1325
Beam Pattern:	Low Beam
Homologation:	ECE R149, R10, DOT FMVSS 108
LED Type:	OEVehicle LEDs
Color Temp:	5700K-6500K
Raw Lumen:	1500LM
Effective Lumen:	900LM
Raw Power:	12W
Effective Power:	11.5W
Current Draw @ 12V:	1.83A
EMC Grade:	CISPR 25 Class 3
Operating Voltage:	10~30VDC
Connector:	Open Cable

Mechanical Features
Size:	166X 107X 86MM
Housing Material:	Aluminium Alloy
Lens Material:	Anti-UV PC
Lens Processing:	Surface Hardened
PC Brand:	COVESTRO 2407
Mount:	Flush Mount
IP Rate:	IP66, IP6K9K
Work Temp:	-40-+50°C
Life Time:	>30,000H
Warranty:	3 Years
