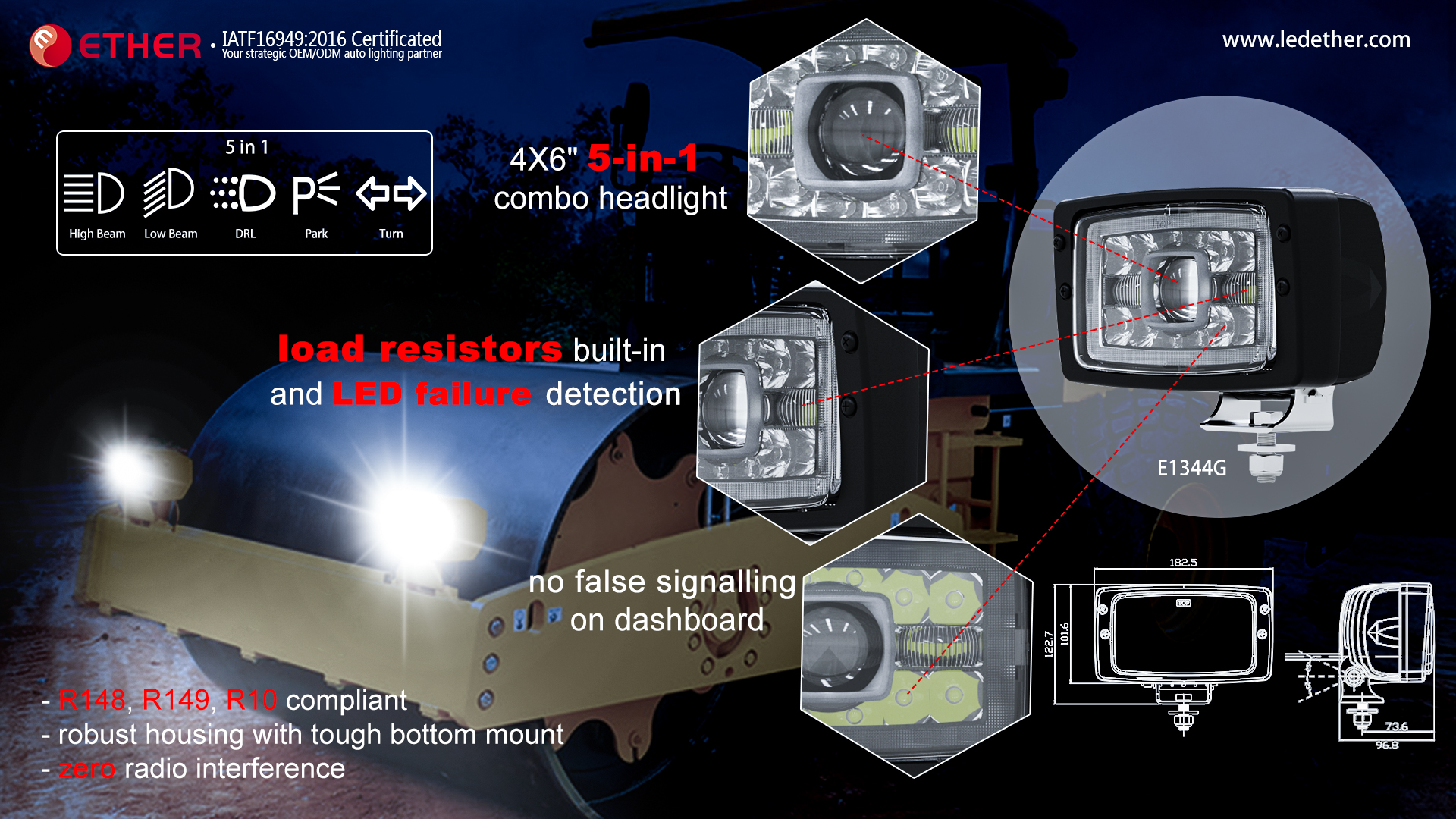

E1344G 4X6" 5-in-1combo headlight
Ioad resistors built-in and LED failure detection
no false signalling on dashboard
R148. R149,R10 compliant
robust housing with tough bottom mount
zero radio interference
Ioad resistors built-in and LED failure detection
no false signalling on dashboard
R148. R149,R10 compliant
robust housing with tough bottom mount
zero radio interference
| Model: | E1344G | |
| Beam Pattern: | Low Beam, High Beam, Parking, DRL, Turn | |
| Homologation: | ECE R148,R149, R10 | |
| LED Type: | OEVehicle LEDs | |
| Color Temp: | 5700K (White),1700-1900K (Turn) | |
| Effective Lumen: | High Beam: 3319 LM Low beam: 1500 LM parking: 172 LM, DRL: 518 LM | |
| Effective Power: | High Beam: 45W, Low Beam: 45W | |
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10~30VDC | |
| Connector: | Open Cable | |
| Mechanical Features | ||
| Size: | 182.5X83.79X101.8MM | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40-+50°C | |
| Life Time: | >30,000H | |
| Warranty: | 3 Years | |
