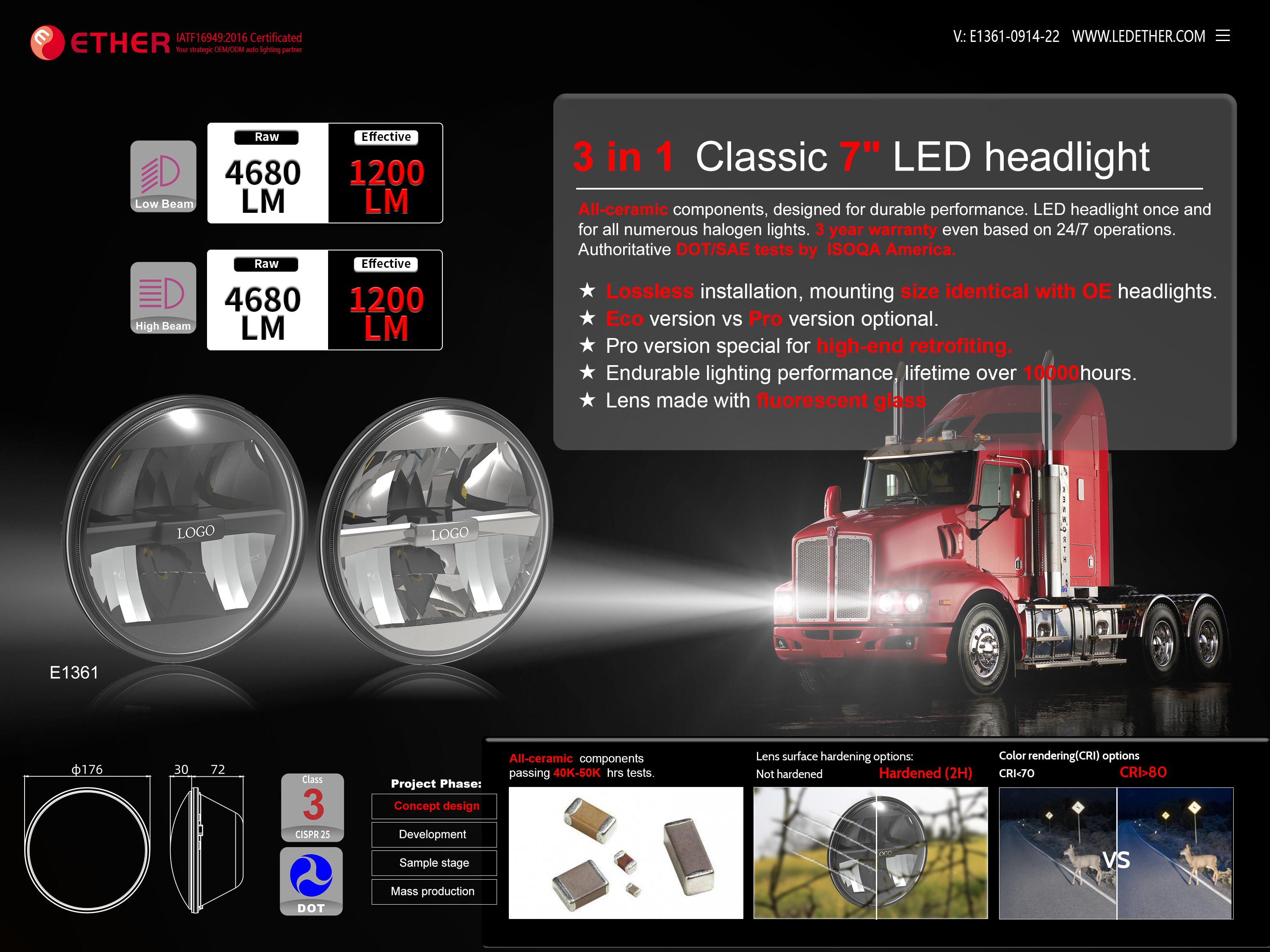

All-ceramic components, designed for durable performance. LED headlight once ancfor all numerous halogen lights. 3 year warranty even based on 24/7 operations.Authoritative DOT/SAE tests by ISOQA America.
1.Lossless installation, mounting size identical with OE headlights
2. Eco version vs Pro version optional.
3. Pro version special for high-end retrofiting.
4.Endurable lighting performance, lifetime over 10000hours
5. Lens made with fluorescent glass
| Model: | E1361 | |
| Beam Pattern: | Low Beam, High Beam | |
| Homologation: | ECE R149, R10, DOT FMVSS 108 | |
| LED Type: | OEVehicle LEDs | |
| Color Temp: | 5700K-6500K | |
| Raw Lumen: | Low Beam: 4500LM High Beam: 1900LM | |
| Effective Lumen: | Low Beam: 2900LM High Beam: 1100LM | |
| Raw Power: | Low Beam: 36W High Beam: 28W | |
| Effective Power: | Low Beam: 28W High Beam: 22W | |
| Current Draw @ 12V: | Low Beam: 1.83A High Beam: 2.33A | |
| EMC Grade: | CISPR 25 Class 3 | |
| Operating Voltage: | 10~30VDC | |
| Connector: | Open Cable | |
| Mechanical Features | ||
| Size: | 177.8X 177.8X 107MM | |
| Housing Material: | Aluminium Alloy | |
| Lens Material: | Anti-UV PC | |
| Lens Processing: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| Mount: | Flush Mount | |
| IP Rate: | IP66, IP6K9K | |
| Work Temp: | -40-+50°C | |
| Life Time: | >30,000H | |
| Warranty: | 3 Years | |
