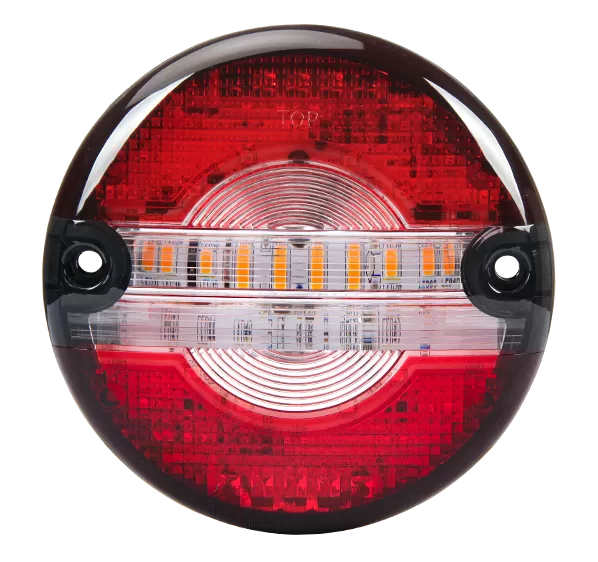

E7503F 140mm LED combination-tail-lamps-5-in-1

E7503F 140mm LED combination-tail-lamps-5-in-1

Hot Tail Light Assembly More Human,More Practical,Safer like never beforeTail Light as Tail does

-HOT Selling Taillight assembly

-Special for Big and Oversize Wehicles

-Original Optic Design

-Zero dark corner@ reversing

-No glare

-Higher visibility

-Higher safety

Inquire Now

Model:	E7503F
Functions, Homologation
Functions:	Rear Position Brake (Stop) Reverse (Back up) Rear DI(Turn) Rear Fog
Homologations	ECE R7 S1 ECE R7 R1 ECE R23 ECE R38 ECE R6
Optical & Electric Features
Effective power:	Rear Position 0.75w (red light)‚ Rear Fog 3w(red light)‚ Rear DI(Turn) 2.5w(yellow light)‚ Brake (Stop) 3.4w (red light)‚ Reverse (Back up) 10.5w (white light)
Electromagnetic Features
EMC Grade:	R10
Operating Voltage:	10V~30V

Mechanical Features
Size:	148 X 95 X 58 mm
Housing Material:	Super conducting Graphene
Lens Material:	PC Lens
IP Rate:	IP67,IP6K9K
Work Temp:	-45~65°C
So this is Life
Life Time:	>30,000H

E7503F 6”LED combination-tail-lamps-5-in-1
