Why Gen.IV E2139AS-1?

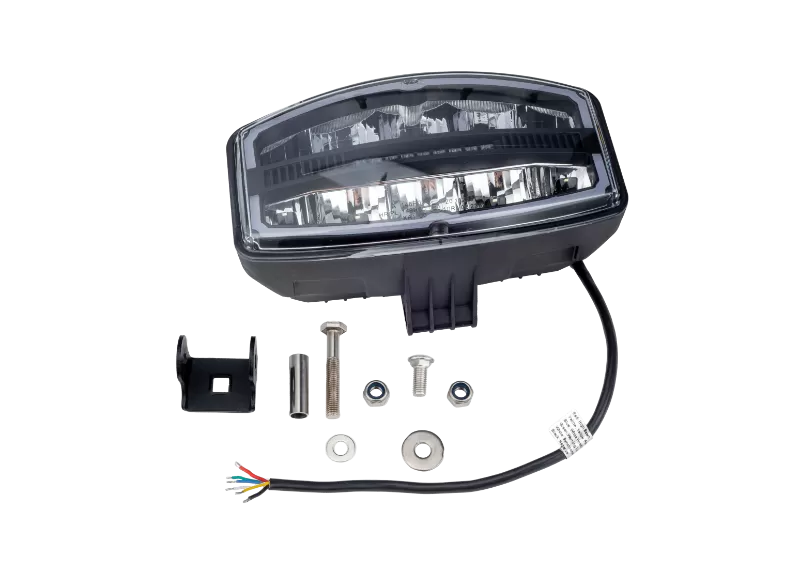

I. Lossless installation, mounting size identical with OE parts.
II. Synchronized strobe light available, max 6 lights.;
III. OEM automotive grade LEDs.
IV. Over 10,000 hours 24/7 non-stop operation, truck friendly.
V. High level EMC, up to CISPR 25 Class 5.
VI. Zero interference against radio,mobile,nor reversing camera signals
VII.Legally on-road,fully E-marked for driving beam, position, as well as strobe.
| Feature | Details | |

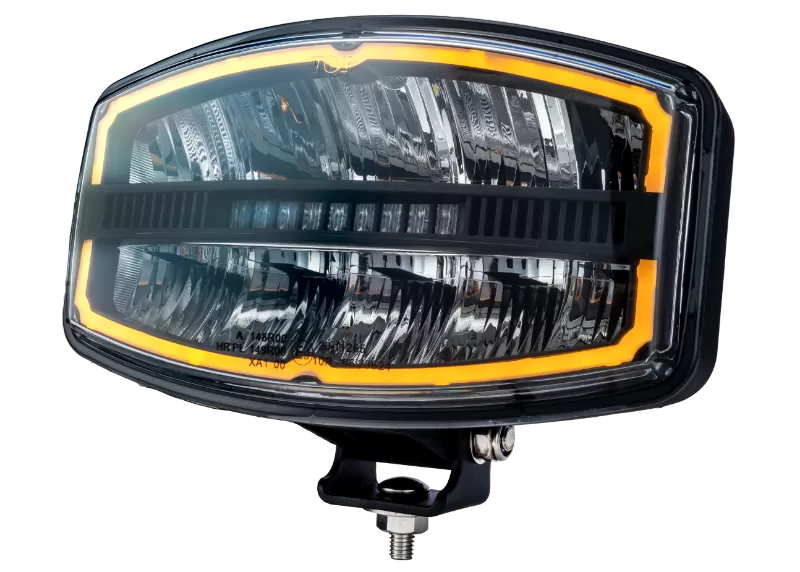

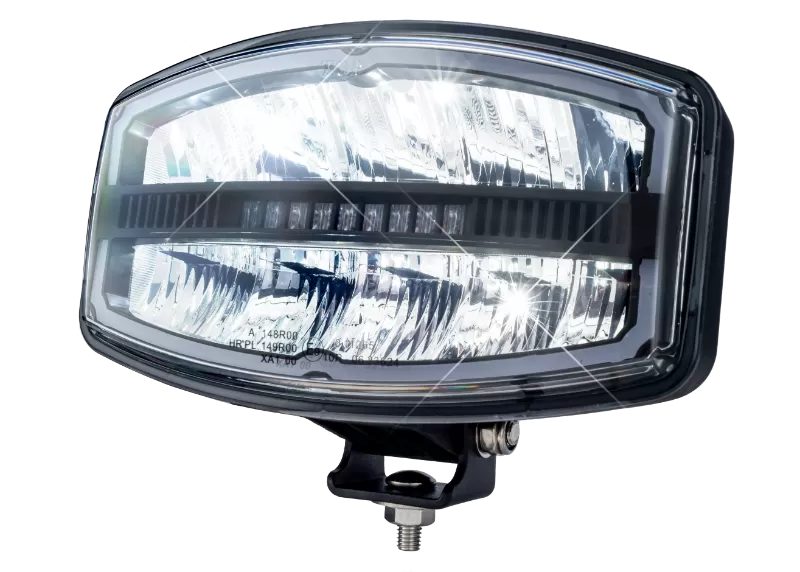

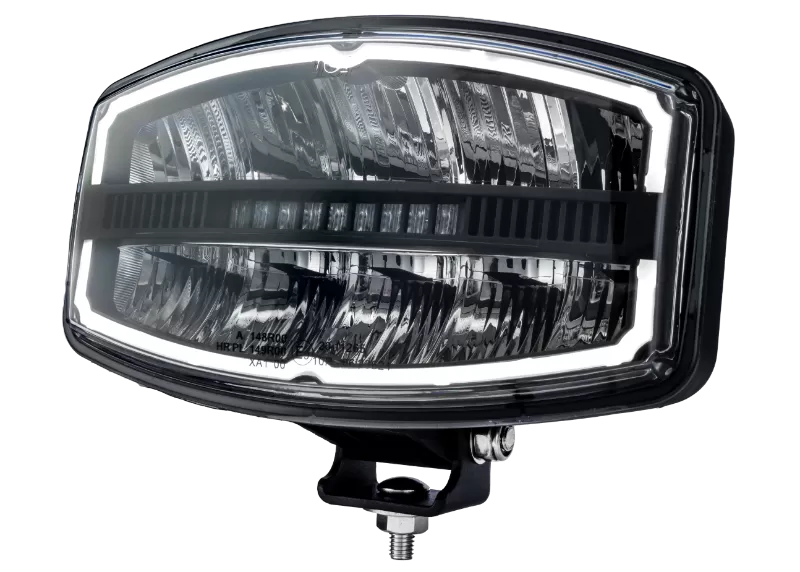

| LED Type: | 12X 5W LED(s) High Beam 40X0.1W LED(s)(A) Position 40X0.1W LED(s)(W) Position 9X2W LED(s) Strob | |
| Color Temp: | 5700K~6500K (High beam) | |
| Raw power: | High Beam: 60W; Position: 4W(A)/4W(W) Strobe: 18W | |
| Raw lumen: | High Beam: 6000LM | |
| Energy Consumption: | High Beam: 33W; Position: 3W(A)/3W(W) Strobe: 15W | |
| Current Draw @ 24V: | High Beam: 1.38A; Position: 0.16A Strobe: 0.63A | |
| Effective lumen: | 1700LM (Ref.20) | |
| EMC Grade: | CISPR 25 Class 5 | |
| Operating Voltage: | 10V~30V | |
| Connector: | 4pin cable |
| Size: | 244X138.4X110mm | |
| Housing Material: | Graphene | |
| Lens Material: | Anti-UV PC | |
| Lens Material: | Surface Hardened | |
| PC Brand: | COVESTRO 2407 | |
| IP Rate: | IP66, IP6K9K | |
| Connector: | 5 pin cable (strobe synchronized) | |
| Work Temp: | -40~+50℃ | |
| Life Time: | >30,000H |

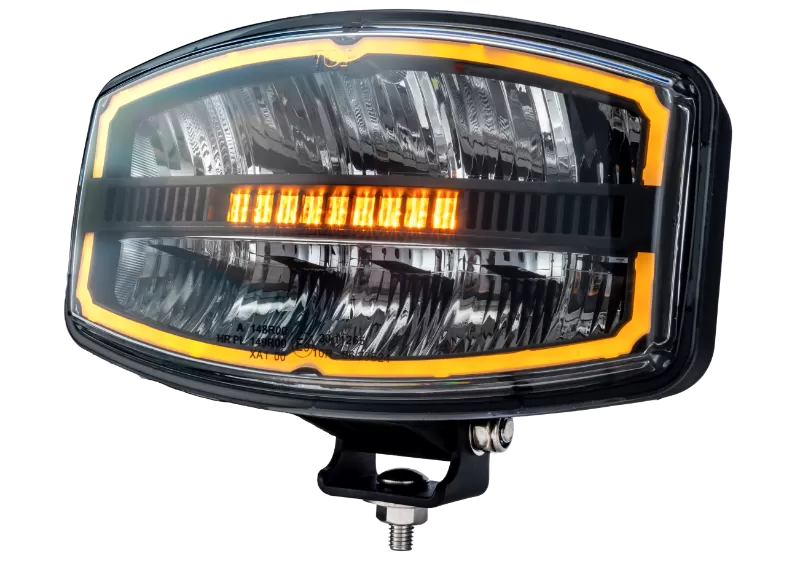

E2139AS-1
