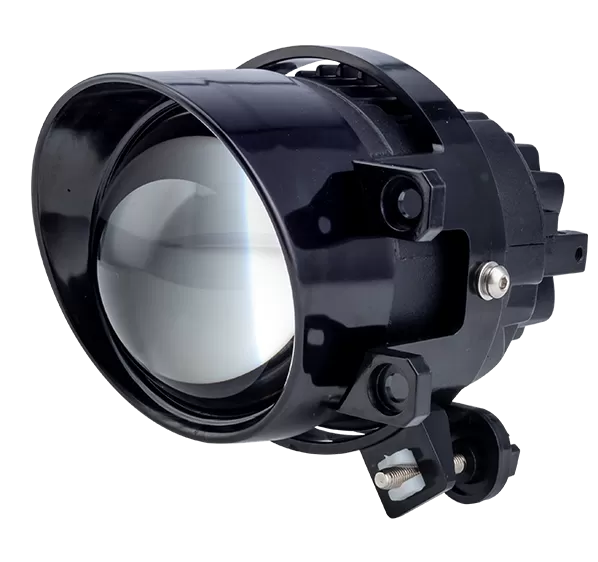

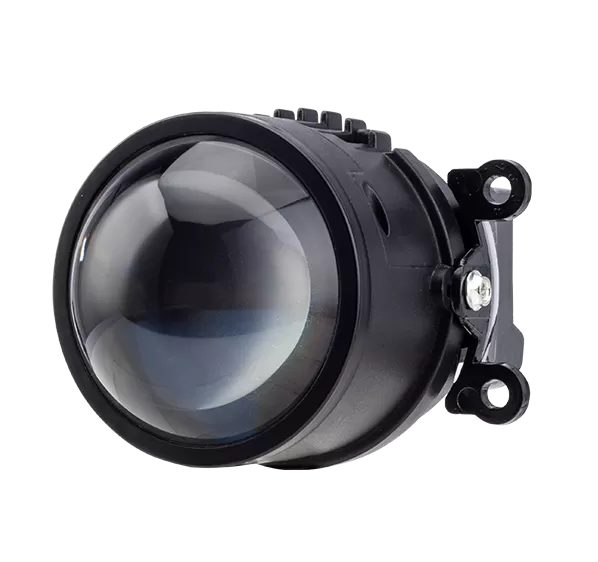

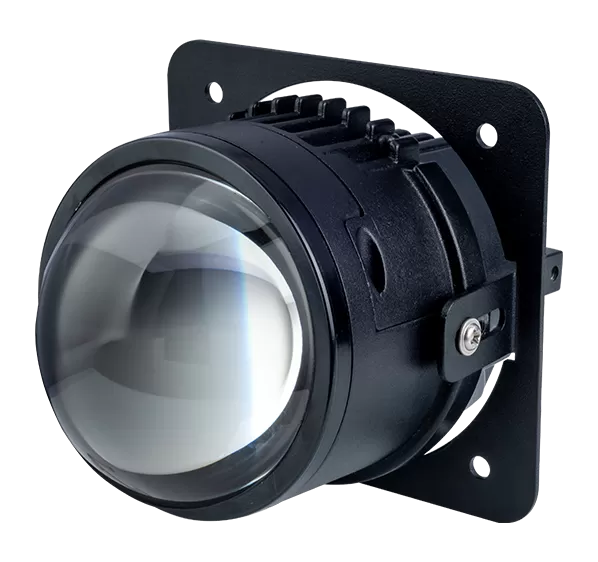

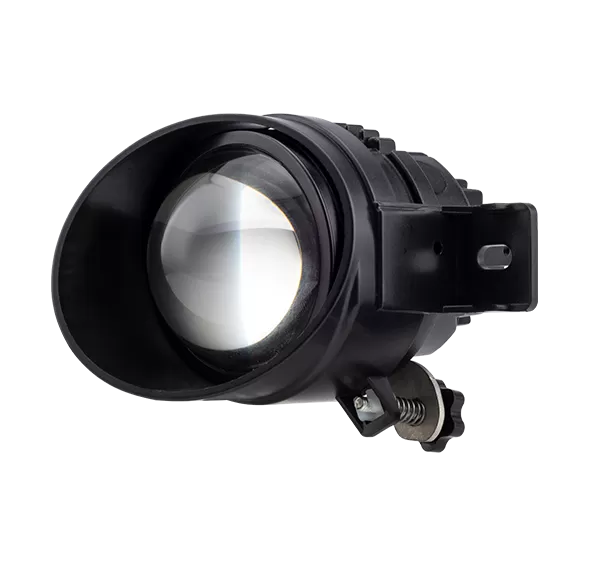

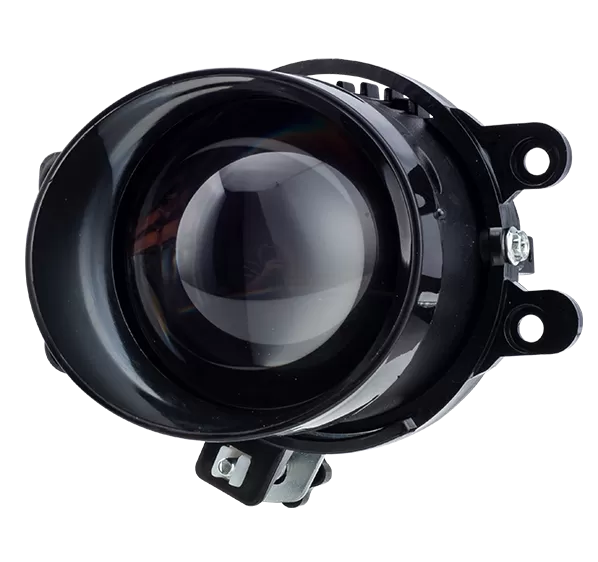

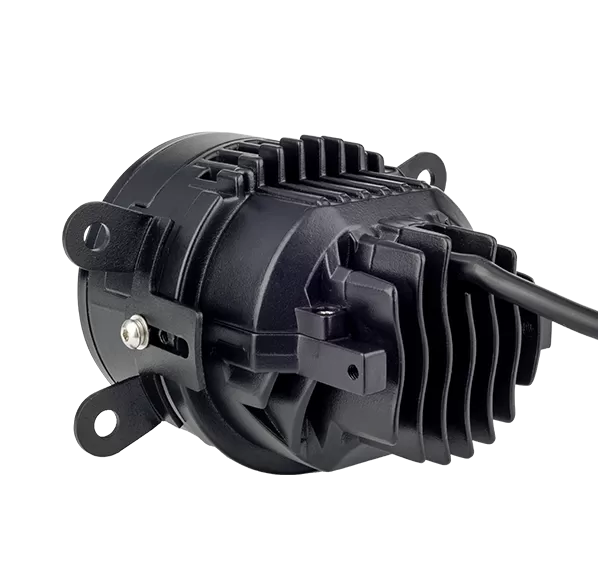

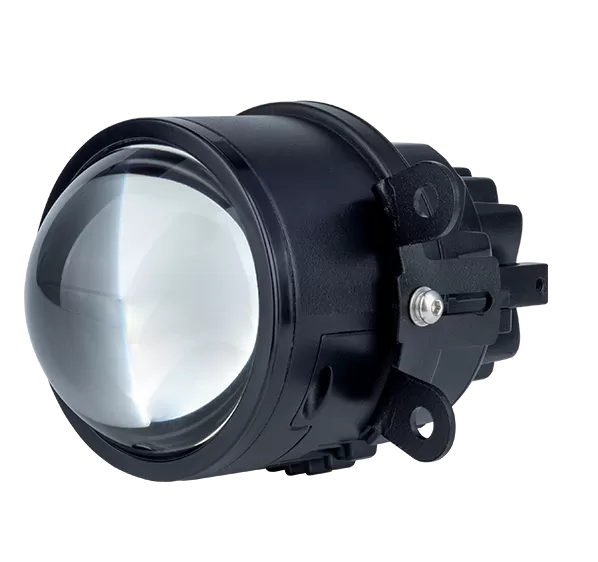

E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight
E3108 3.5" Patented 88mm bi-module LED headlight

E3108 3.5" Patented 88mm bi-module LED headlight

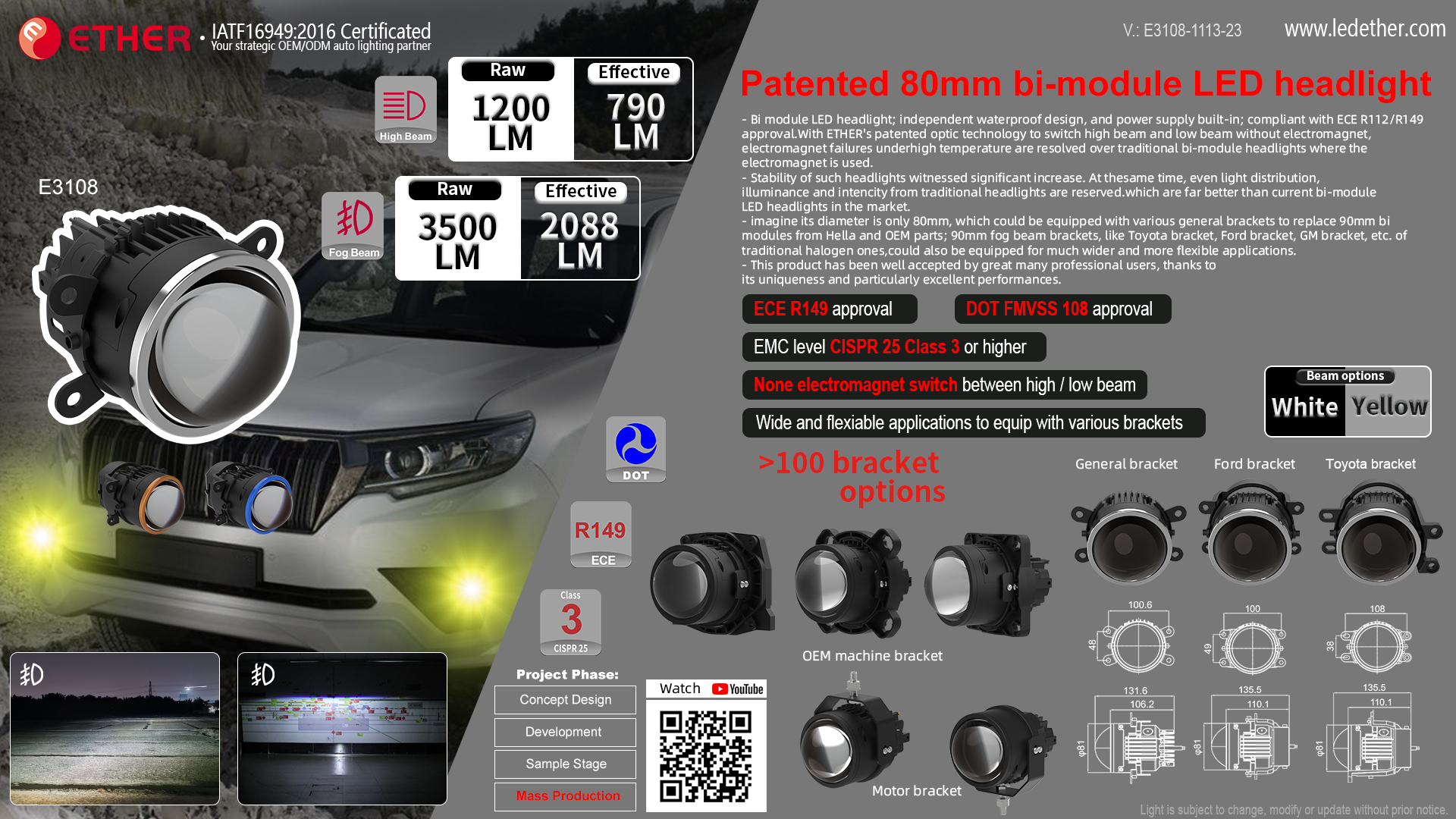

- Bi module LED headlight; independent waterproof design, and power supply built-in; compliant with ECE R112/R149approval.With ETHER's patented optic technology to switch high beam and low beam without electromagnetelectromagnet failures underhigh temperature are resolved over traditional bi-module headlights where theelectromagnetis used.

Stability of such headlights witnessed significant increase. At thesame time, even light distributionilluminance and intencity from traditional headlights are reserved.which are far better than current bi-moduleLED headlights in the market.

imagine its diameter is only 80mm, which could be equipped with various general brackets to replace 90mm bimodules from Hella and OEM parts; 90mm fog beam brackets, like Toyota bracket, Ford bracket, GM bracket, etc. oftraditional halogen ones,could also be equipped for much wider and more flexible applications.

This product has been well accepted by great many professional users, thanks toits uniqueness and particularly excellent performances.
None electromagnet switch between high / low beam

Wide and flexiable applications to equip with various brackets

Model:E3108
Beam   Pattern: High Beam,Fog Beam
Homologation: R10 R149
LED Type:OEVehicle LEDs
Color Temp:5700K-6500k
Raw   Lumen:Fog Beam: 3500LM
High Beam: 1200LM
Effective Lumen:Fog Beam: 2088LM
High Beam: 790LM
Raw Power:Fog Beam: 30W
High Beam: 15W
Effective Power:Fog Beam: 30W
High Beam: 15W
EMC Grade:CISPR 25 Class 3
Operating Voltage:10~30VDC
Connector:Open Cable
Mechanical Features
Size:φ82*φ88.3*130.7mm
Housing Material:Aluminium Alloy
Lens Material:Anti-UV PC
Lens Processing:Surface Hardened
PC Brand:COVESTRO 2407
Mount:Flush Mount
IP Rate:IP66, IP6K9K
Work Temp:-40-+50°C
Life Time:>30,000H
Warranty:3 Years
